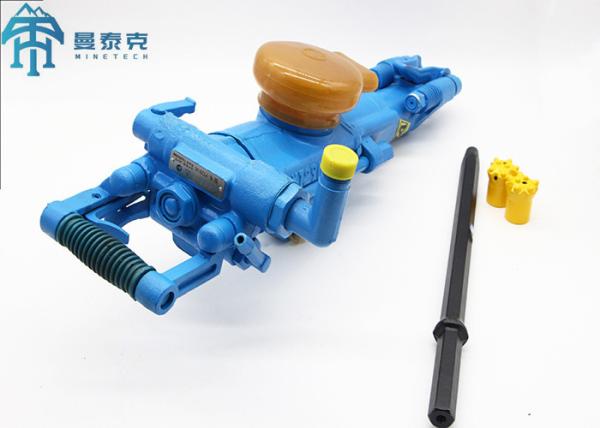

Pneumatic Handheld Yt27 Rock Drill Air Leg Rock Drill For Mining Tunneling

Brand Name : MTH

Model Number : YT27

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2000 sets per week

Delivery Time : 7-15 woring days

Packaging Details : Wooden case

Name : Rock Drill

Model : YT 27

Weight : 27kg

Application : mining tunneling and various engineering operations in the drilling of cannon holes, metallurgy, coal, railway, transportation, water conservancy and national defense stone works

Machine Type : Drilling Tools

Advantage : Low price, ease of use, improved efficiency and energy savings.

Piston stroke : 60mm

Shank : 22×108±1

Contact Now

Pneumatic Hand Held Mining With Air Leg Rock Drilling Machine

Product Information:

Hand-held pneumatic rock drill, hot selling models are Yt24, Yt27, Yt28, Yt29, Yt29A. It is mainly used for blasting hole and other drilling work, railway,construction,water conservancy construction and defence project facility. It is suitable for drilling and blasting under various of rocks at any direction angles.

Specifications:

PRODUCT SPECIFICATION
The parameter name	Unit	The parameter value
Weight	kg	≈27
Length	mm	668
The cylinder diameter	mm	80
Piston stroke	mm	60
Gas consumption	L/s	≤80
Drilling and frequency	Hz	≥37
Impact energy	J	≥75.5
borehole speed	mm/min	≥475
The borehole diameter	mm	Φ34-45
Perforating depth	m	5
Shank	mm	22×108±1

Features:

Low price, ease of use, improved efficiency and energy savings.

Application:

mining tunneling and various engineering operations in the drilling of cannon holes, metallurgy, coal, railway, transportation, water conservancy and national defense stone works

Pneumatic Handheld Yt27 Rock Drill Air Leg Rock Drill For Mining Tunneling
